IR21364(S&J)PbF

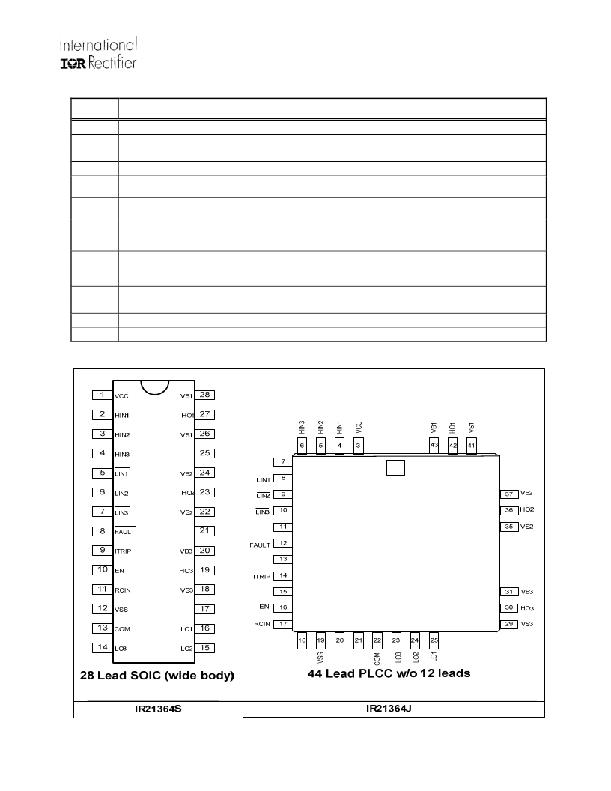

Lead Definitions
Symbol
V CC
V SS
HIN1,2,3
LIN1,2,3
FAULT
EN
ITRIP
RCIN
COM
V B1,2,3
HO1,2,3
V S1,2,3
LO1,2,3
www.irf.com
Description
Low side supply voltage
Logic ground
Logic inputs for high side gate driver outputs (HO1,2,3), in phase
Logic input for low side gate driver outputs (LO1,2,3), in phase
Indicates over-current (ITRIP) or low-side undervoltage lockout has occurred. Negative logic, open-drain
output
Logic input to enable I/O functionality. Positive logic, i.e. I/O logic functions When ENABLE is high. No
effect on FAULT and not latched
Analog input for overcurrent shutdown. When active, ITRIP shuts down outputs and activates FAULT and
RCIN low. When ITRIP becomes inactive, FAULT stays active low for an externally set time T FLTCLR , then
automatically becomes inactive (open-drain high impedance).
External RC network input used to define FAULT CLEAR delay, T FLTCLR, approximately equal to R*C.
When RCIN > 8 V, the FAULT pin goes back into open-drain high-impedance
Low side gate drivers return
High side floating supply
High side gate driver outputs
High voltage floating supply return
Low side gate driver outputs
? 2009 International Rectifier
